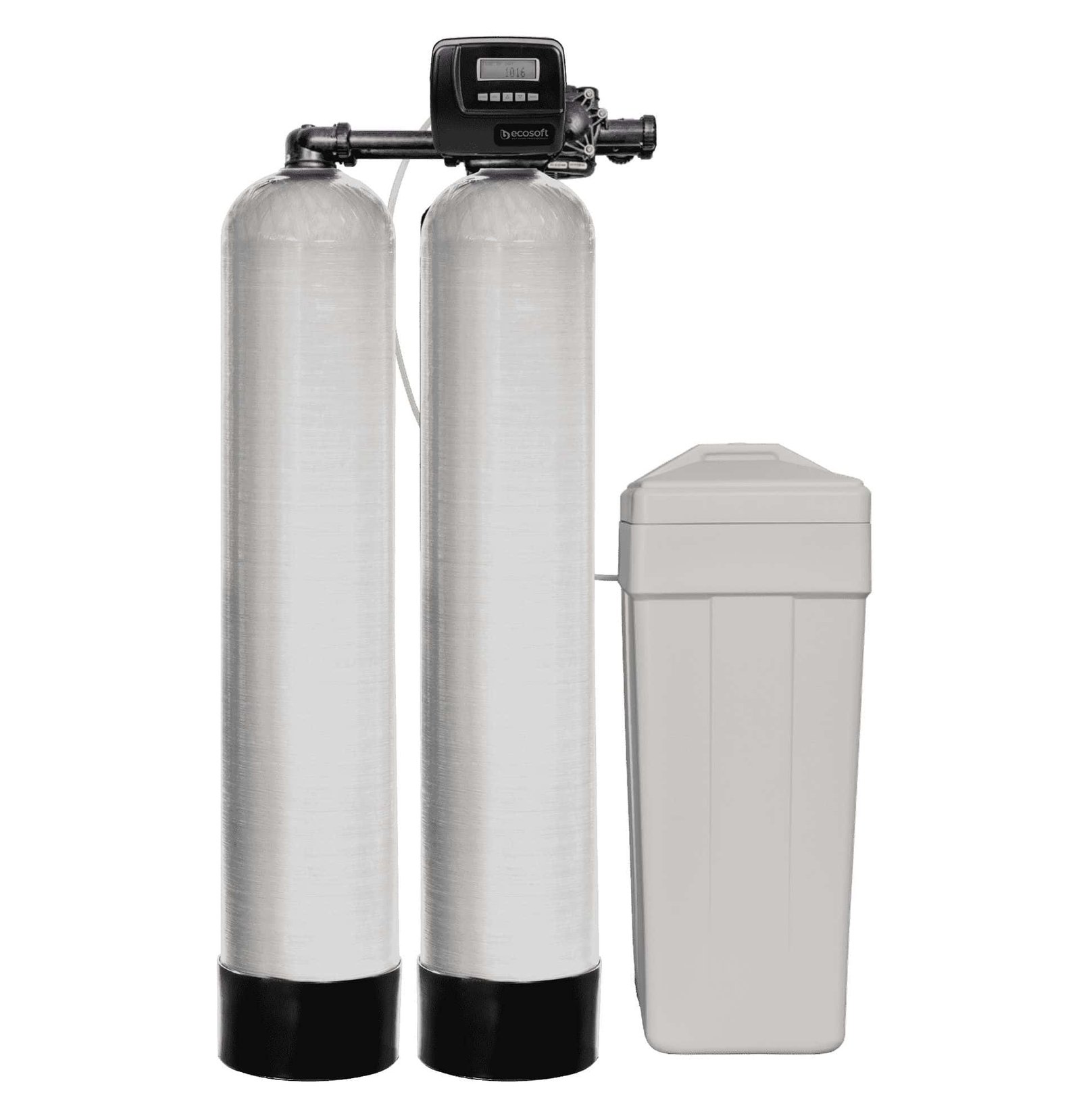

Dvigubas vandens minkštinimo komplektas (10×54) 1″ CLACK CE vožtuvas – 37×2 Litrai : UŽPILDAS – ECOMIX C

KEY FEATURESEnsures stable water quality with constant flowUser friendly installationDoesn`t create hydraulic shocksSIZE AND WEIGHTDimensions, H×W×D: 1586 x 1570 x 430 mmFilter weight 32 kgSPECIFICATIONSet of equipmentCE TWIN 1″ controlvalve 1‍Pressure tank 10×54, 2,5″ 2Brine tank 3           1 CE TWIN 1″ valve assembly (VTT1CEDME-03):CE TWIN 1″ control valveTop stack distributor, 11 segmentsConnection kit 1”Power supplyInjector, DLFC – for Ecomix and cation exchange resinFunnelValve instruction manual, instruction manual             2 Pressure tank assemblyPressure tank 10×54, 2,5″RiserBottom stack distributor             3 Brine tank assenblyBrine tank 15x17x36, 125 LBrine well assembly (brine valve, overflow set)Twin set may operate 2 units with alternativemode (the first unit in operation, the second -in regeneration or stand by) and can produce water during the day at constant flow rate.CE CONTROL VALVE KEY FEATURES‍Regeneration control by water volume: delayed regen, immediate, bothPossibility to change the cycle of regeneration stages and their range of timeMultilanguage menu: English, German, French, UkrainianDifferent setting modes are available:          – Twin or duplex configurations          – Up to 6 systems to the system controller          – 2 external devices simultaneously can be connectedSPECIFICATIONSWater flow rate*          – Service (pressure drop 1 bar) – 6,12 m3/h          – Backwash (pressure drop 1,7 bar) – 6,12 m3/hInlet, outlet – G 1″Drine – G 1″Brine line – G 3/8″Operating pressure – 2-6 barOperating temperature 4… 30 oCElectrical requirements – 230 V, 50 HzElectrical power – 30 WVolume of pressure tank – 63 LVolume of brine tank -125 LThe volume of the rounded side – 2,5 LDry system weight – 32 kg* Only for Clack WS1 CE control valves includes meter, bypass, and 1″ fitting kitRECOMMENDED MEDIA VOLUME FOR ONE CYLINDERPC002 Katijonų mainų derva – 37 LHCRS-S Katijonų mainų derva – 37 LEcomix A derva – 37 LEcomix C derva – 37 LThe volume of filter material depends on the its characteristics. TDS on filter materials can be found on the official website www.ecosoft.comACCESSORIES**V3006 WS1 Bypass AssemblyV3009 WS1 Auxiliary Microswitch AssemblyV3191-01 WS1 Bypass Vertical Adapter Assy** Not included in the basic set. Can installed as additional equipment.DOWNLOADWater Specialist CE Control Valve Programming ManualSOFTENER CONNECTION KITEcosoft media filters manualRF1054CE softener assy specifications
